Asphalt Drum Mix Plant

About Asphalt Drum Mix Plant

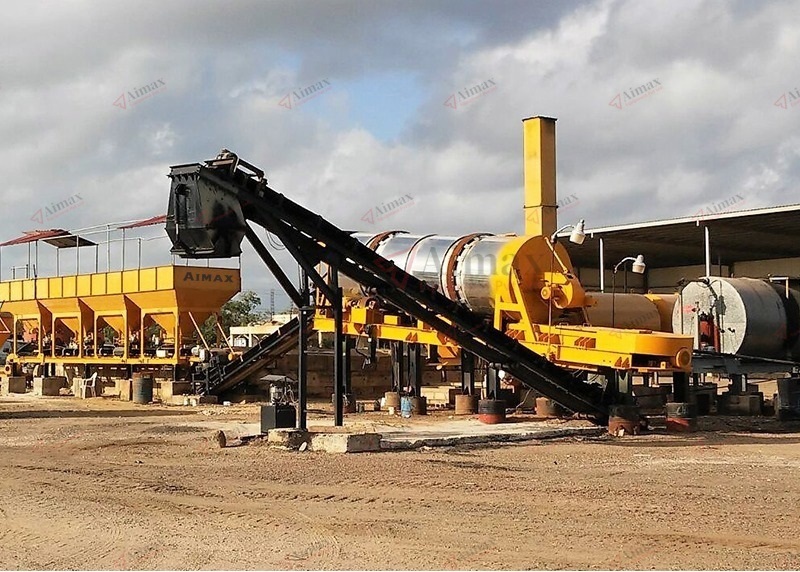

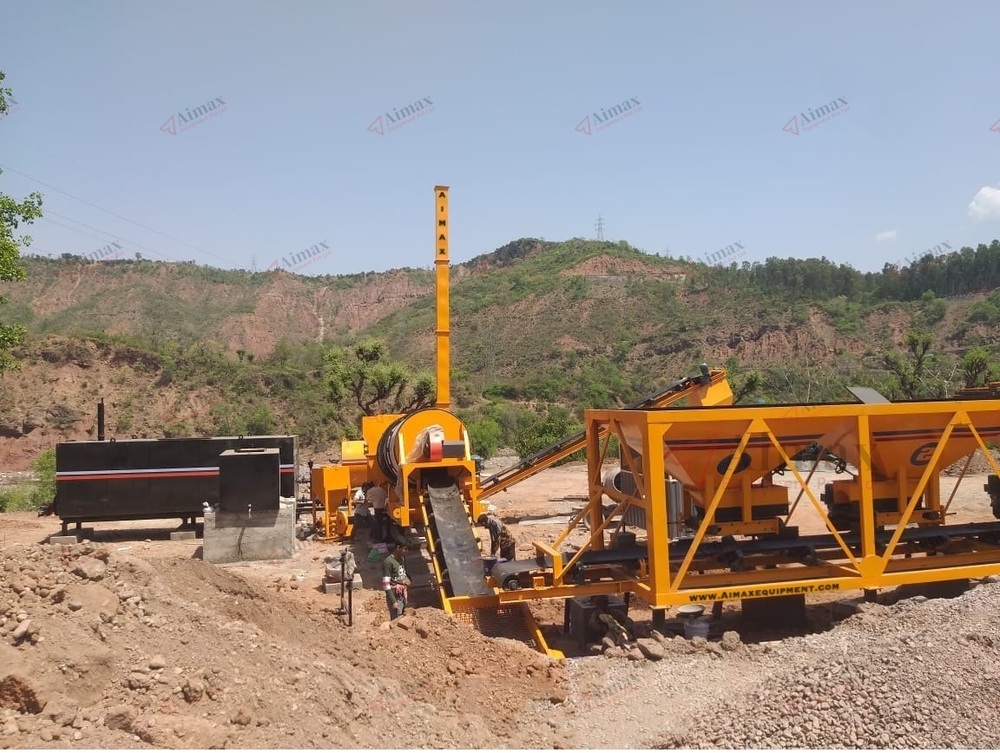

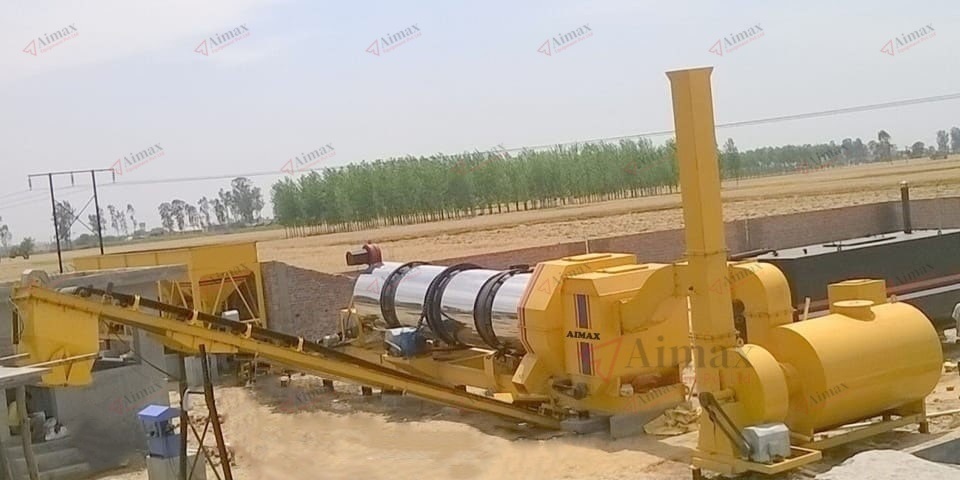

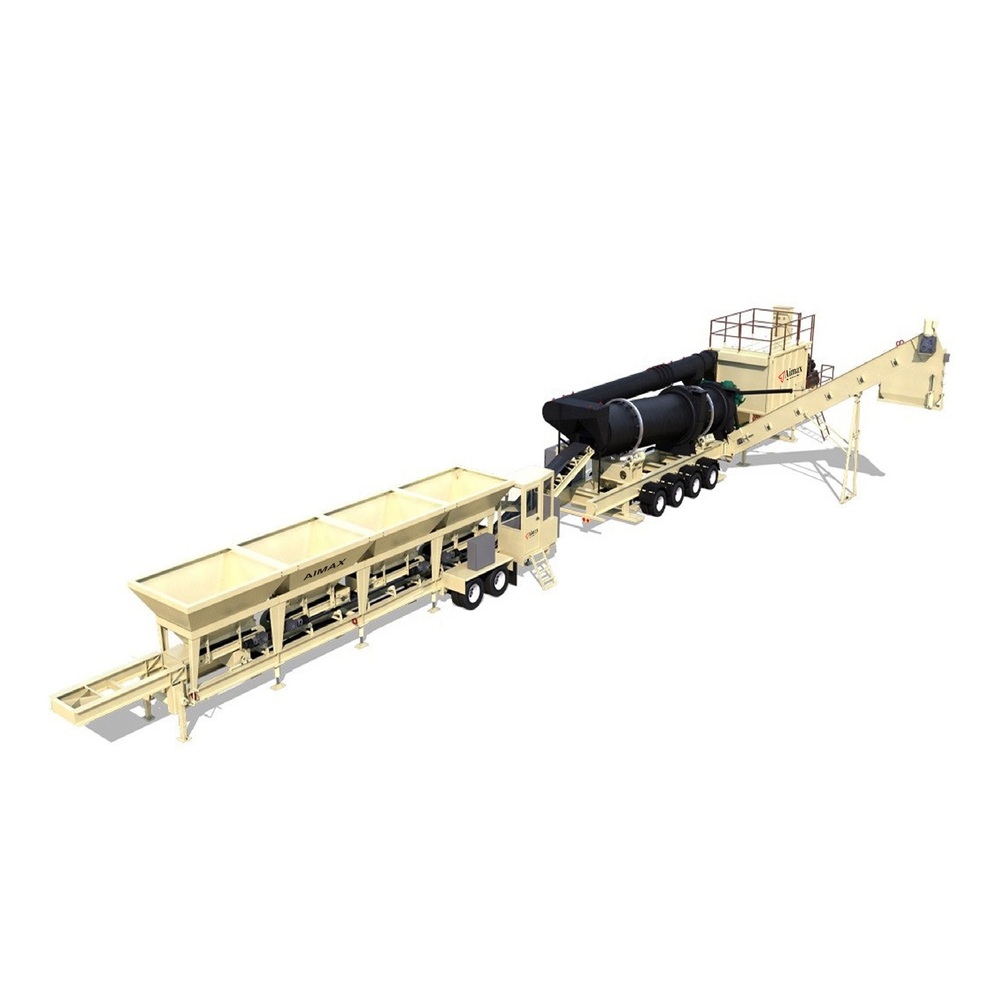

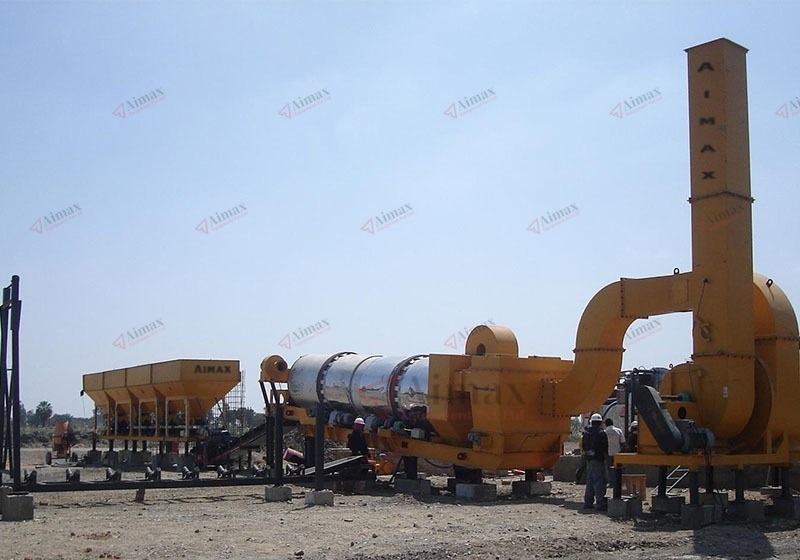

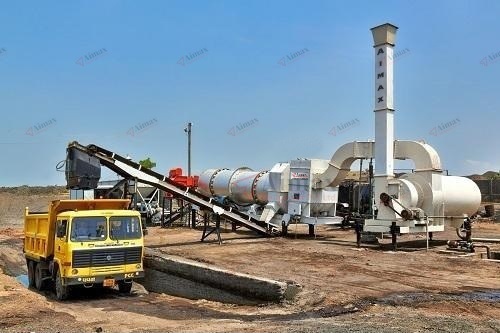

Asphalt Drum Mix Plant

- Plant Capacity: 30-120 TPH (tons per hour)

- Plant Model: ADM-60/90/120

- Plant Type: Asphalt Drum Mix Plant

Cold Aggregate Feeder

- Type: Step-type feeder with 4/6 bins

- Capacity: 10-20 tons per hour per bin

- Bin Size: 10-15 cubic meters per bin

Drum Mixer

- Type: Parallel flow/counter flow drum mixer

- Length: 6-8 meters

- Diameter: 1.8-2.2 meters

- Capacity: 30-120 tons per hour

- Heat Source: Fuel oil/gas/natural gas

Asphalt Tank

- Capacity: 10/20/30 tons

- Type: Insulated tank with heating system

- Heat Source: Fuel oil/electricity

Mineral Filler

- Type: Screw conveyor with hopper

- Capacity: 1-2 tons per hour

Dust Collector

- Type: Cyclone dust collector/bag house

- Capacity: 10,000-20,000 cubic meters per hour

- Efficiency: 99%

Control Panel

- Type: PLC-based control panel

- Features: Automatic temperature control, automatic asphalt flow control, automatic aggregate flow control

Electrical Requirements

- Power: 250-500 kW

- Voltage: 380-440V

- Frequency: 50-60 Hz

Fuel Consumption

- Fuel Type: Fuel oil/gas/natural gas

- Fuel Consumption: 10-20 liters per hour

Optional Features

- Moisture Removal System: Removes moisture from the aggregate

- Asphalt Recycling System: Allows for recycling of asphalt materials

- Automatic Sampling System: Automatically takes samples of the asphalt mix
